ADHERING TO THE POINT


The use of adhesives in stained glass restoration

Roberto Rosa


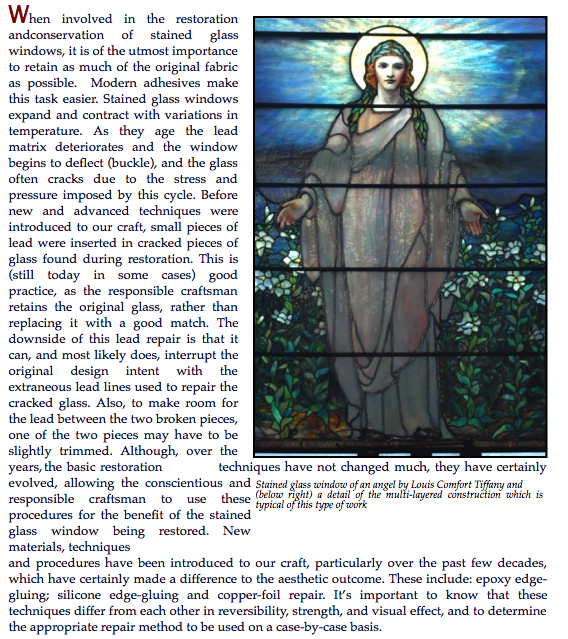

EPOXY EDGE-GLUING

Edge-gluing broken pieces of glass with an epoxy produces a nearly invisible line. This attribute is particularly valuable where focal points of a window such as a face have been damaged. Furthermore, epoxy resins can be tinted with fine pigments to match the glass, reducing the light transmission and refraction. Epoxy can also be used for infusing microscopic cracks. This technique produces a very strong repair, but will most likely deteriorate in sunlight therefore requiring a secondary glazing to protect it from UV degradation. Epoxy is the least reversible of the three techniques and the most time consuming. The type of epoxy resin used is not to be confused with epoxies found on the shelves of local hardware stores. It is specifically made for glass conservation. Serpentino Stained and Leaded Glass studio has been using Hxtal NYL-1 epoxy, which is an ultra pure resin that seems to remain clear and transparent over time and with exposure to direct light. Hxtal is supplied in two liquid parts (A and B), both of low viscosity. It is to be weighed accurately, (one part, by weight, of part B plus three parts, by weight, of part A). After the two parts have been weighed into a mixing jar, they must be mixed thoroughly. This part requires a lot of patience and must not be rushed. As the Hxtal is mixed, numerous tiny air bubbles will be seen to rise and pop. This is normal and to be expected, but be mindful that the bubbles will never totally disappear. The best way to eliminate the bubbles is with the use of a small vacuum chamber to suck the air out of the glue. This is called “de-gassing” the glue. Small vacuum chambers are not very expensive and are quite useful. Freshly mixed Hxtal has a very low viscosity. If it seems too thin, let it stand (covered), and over a period of several hours it will thicken. Thin Hxtal, however, will penetrate cracks making them virtually disappear. The best results are obtained when the glass is warmed to about 49ºC/120ºF (a hair dryer or some other heat source can be used, taking care that the glass being repaired is not heated too much or too quickly). Since edge-gluing of cracked glass is performed over a light table, I turn on the light table several hours before repairing the cracks. This will evenly warm the glass surface of the light table, aiding the penetration of the epoxy into the cracked glass, as the heat from the light table draws the epoxy into the cracks. Hxtal sets slowly at about 24ºC/75ºF. It requires about one week to achieve its final bond strength. However, ordinarily it sets after 24 hours, enough to hold the two parts together as long as no stress is applied to the repaired glass. Any excess epoxy should be removed with a sharp razor blade. The use of solvents is not recommended as they may seep through the epoxy and could have a long-term effect on the repaired piece.

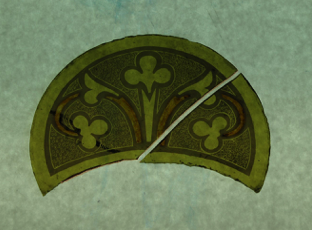

A badly damaged lamb before and after epoxy edge-gluing

SILICONE EDGE-GLUING

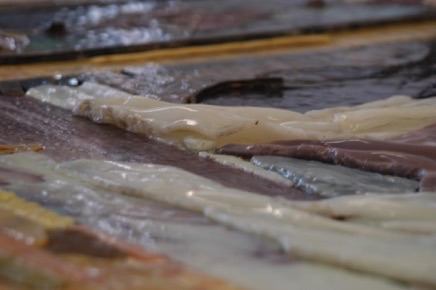

Silicone has very different properties from epoxy and provides a useful alternative for edge-gluing. This repair technique has the lowest strength of the three methods and should be used when a flexible joint is desirable. For instance, in situations where the window will be under continuous stress or in the case of plated, multi-layered windows such as ones designed and fabricated by the American renowned artists John La Farge and Louis Comfort Tiffany. As all components of a building expand and contract, so do stained glass windows. In the case of plated, multi-layer windows, as glass is stacked on top of each other, during the expansion/contraction cycle it is best to have a repaired crack that flexes with the expansion phase, so that it can return to its original position unaltered following the contraction phase of the cycle.


    One of the benefits of using silicone to repair cracked glass is that it is easily reversible. A sharp razor blade and some acetone will easily remove the silicone from the edges of the glass. An important factor to be understood is that silicone repair (edge-gluing), is not the same as smearing silicone over the surface of the glass, thus covering the crack. Silicone is almost as clear as epoxy, but it refracts light differently, making it detectable at times. The same coloured pigments used with epoxy, can be used with the silicone method reducing the light transmission and refraction. I particularly like to use silicone for glass repair when working on opalescent glass windows. A variety of small batches mixed with dyes of different colours can be easily mixed and manipulated to match the depth and hue of the opalescent glass and its marble-like striations and appearance for which it is so well known. Unlike Hxtal epoxy, UV light does not affect silicone; therefore, a secondary glazing to the exterior is not necessary. For the last 12 years, I have been using, with excellent results, clear silicone RTV 732 by Dow Corning. They supply it in small 2oz tubes, which makes it easy to work with, with little or no waste.

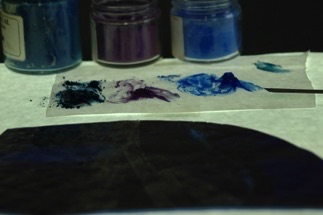

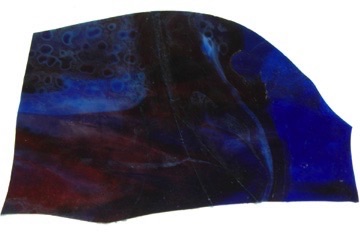

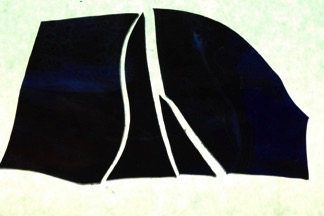

 Silicone edge-gluing, before and after: the middle picture shows pigments being mixed with the silicone to



COPPER FOILING

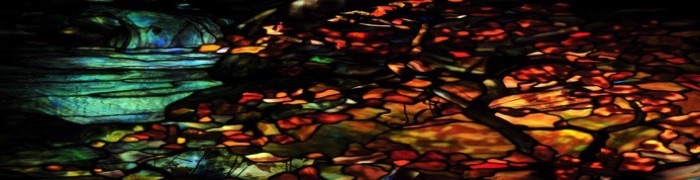

The technique with the longest history is copper foiling, and this is generally the best option when a piece of glass has only one or two cracks. Copper foil is a thin adhesive tape which is applied along each side of the cracked piece, trimmed to a minimal width on the surface of the glass, and soldered. The Tiffany Studios introduced copper foil to stained glass craft where it was used for the manufacturing of their lamps as well as in their stained/opalescent glass windows, especially in and around organic, nature scenes. The craftsmen of the Tiffany Studios mastered the use of copper foil, producing extremely thin lines within their lamps and windows. As restorers, we adopted their technique and material within the restoration field. Copper foil produces a strong repair, is totally reversible and has a negligible aesthetic impact. The final repaired crack should have a thin line no more than 1 mm in width. All three methods are recommended for the repair of cracked glass during restoration. It is the craftsman’s responsibility to examine the entire project and the relevant issues at hand before deciding which method to use on each piece. The most important factor is that each method is reversible. As a craftsman, I look forward to the future and for new techniques and materials to evolve in this “old craft” of ours. As long as we keep an open mind, and are willing to learn, we will be able to restore and preserve our beautiful stained glass windows and their history for generations to come.


Copper foiling, before and after repair: the picture below shows the copper foil being applied

Further Reading

Newton Roy and Davison Sandra,


Conservation of Glass, Butterworth-Heinemann Ltd, 1989


Shashoua Y and Ling D, “Comparison of


Fynebond, Araldite 2020 and Hxtal Nyl-1 Adhesives for Glass and Porcelain


Conservation”, Conservation News 66 (1998)   33-36


Roberto Rosa is a partner at


Serpentino Stained & Leaded Glass, Inc. Needham,


Massachusetts, USA
